International CV™ SERIES
MAKE & MODEL
Manufacturer:
Model:
DETAILED SPECIFICATIONS
| Series/Category: | MEDIUM DUTY |
| Axle Configurations: | 4X2, 4X4 |
| Cab/Sleeper Configurations: | Day Cab, Crew Cab (no sleepers) |
| Wheelbase Range: | 141 - 243" |
| Exhaust Systems: | Horizontal, Frame Mounted, Right Side Under Cab Tailpipe WB greater than 141”: Straight tailpipe, exits right or available left side ahead of rear axle 141" WB: Over rear axle, exits behind rear axle |
| Front Axles: | Dana Spicer: 6,000 - 8,000 lbs. |
| Rear Axles: | Single Rear Axle Dana: Single Reduction: 10,000 – 15,500 lbs. |
| Transmissions: | Allison 6-speed: 1700, 1750, 2700 Series |
| Fuel Tanks: | Single, Rectangular 25 Gallon, Mounted Between Rails Forward of Rear Axle, Single, Rectangular 40 Gallon, Mounted between Rails Behind Rear Axle, Dual, Rectangular 25 Gallon and 40 Gallon |
| Power Steering: | Bosch: S2 8014 Plus |
| GVW: | 16,000 - 23,500 lbs. |
| Cab Interior Trim Levels: | Classic, Diamond |
| Models: | CV515: 115" BBC, 34" BA |
| Engines: | International® 6.6, V8 Turbocharged Diesel Engine, 700 lb. – ft. torque @1600 RPM |
| Frame Rails: | High Strength, Low Alloy Steel 50,000 PSI |
| Front Suspensions: | Taper Leaf Shackle with Shock Absorbers: 6,000 - 7,000 lbs., Parabolic Taperleaf with Shock Absorbers: 7,500 - 8,000 lbs. |
| Rear Suspensions: | Spring, Vari-Rate: 11,000 - 15,500 lbs., Air, International® Ride Optimized Suspension (IROS): 12,000 - 15,500 lbs. (4x2 only) |
| Brakes: | Hydromax with Traction Control and Four Channel ABS |
| Headlights: | Halogen Composite |
| Tires: | Goodyear Continental |
DESCRIPTION

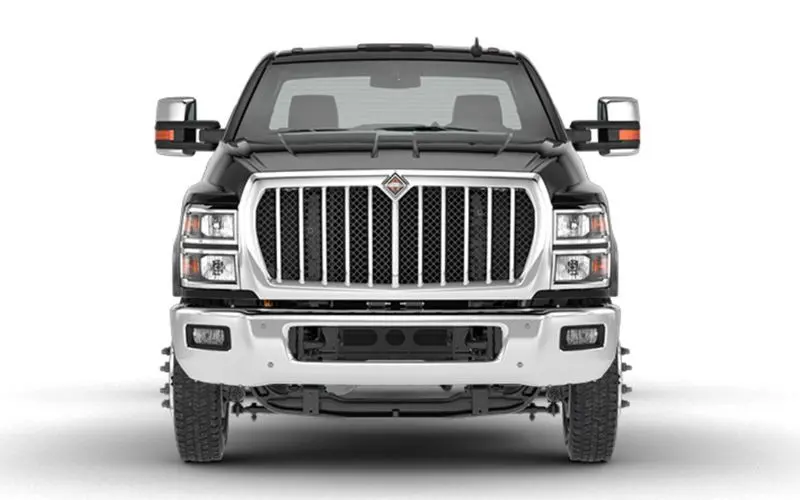

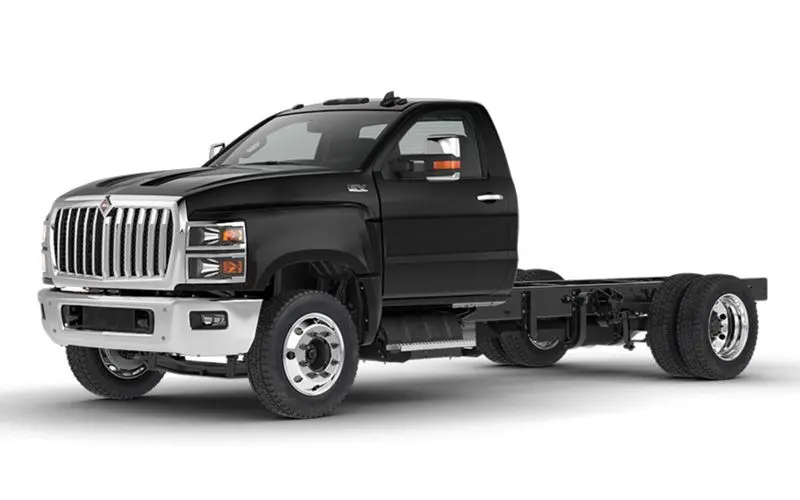

CV™
Introducing the International® CV™ Series – the only class 4/5 truck designed, distributed and supported by a manufacturer that specializes in commercial trucks. That means the CV Series includes commercial-grade features like a heavy-duty, gear-driven transfer case, a single, high-strength frame rail, an available air ride rear suspension, a forward-tilting hood with easy-to-reach maintenance points, 700 ft-lb of reliable torque and a long list of details only found on a true commercial truck. And best of all, the CV Series is supported by the largest commercial dealer network in the industry with more dedicated truck bays and diesel technicians than anyone else. Smart, capable, and strong, the CV Series is ready to take your business to the next level.
Applications:
Utility
Dry Van
Service
Tow
Roll-Back
Ambulance
Dump
Plow
